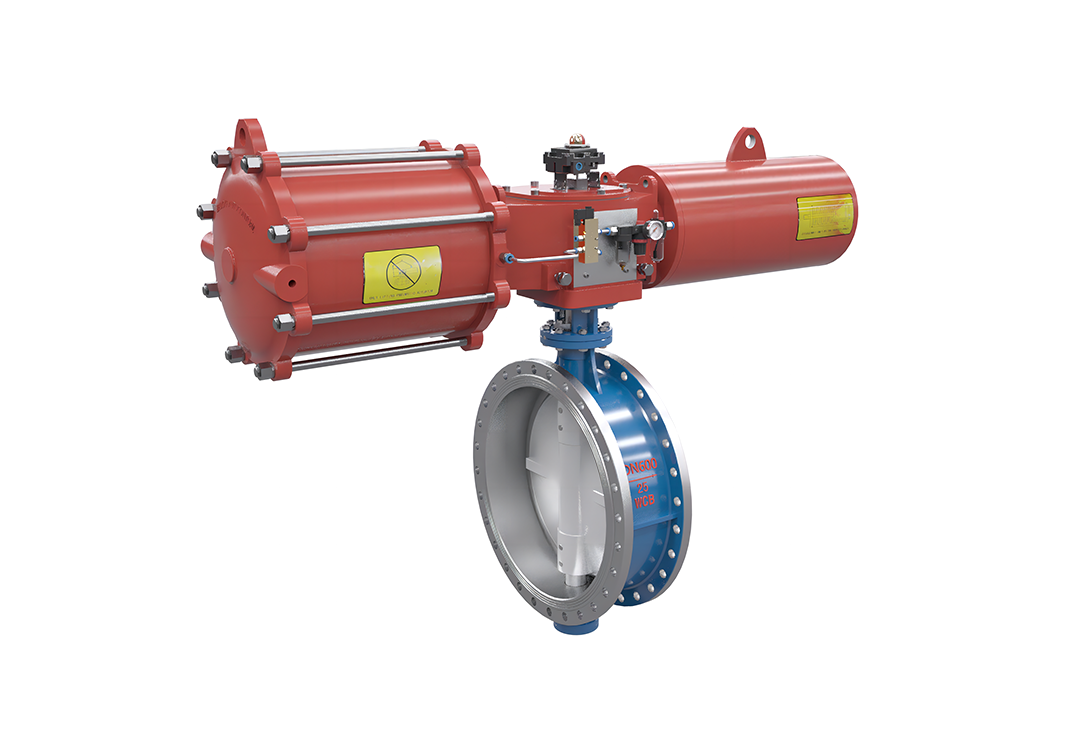

Bidirectional Butterfly Valve

Bidirectional butterfly valve is separated from existing models to ensure the best performance in the two flow directions. This unique function provides a guarantee for unexpected reverse flow, thereby maximizing the life of the valve. It meets the various requirements made from various materials, from durable carbon steel to anti-resistant drug super alloy. The simplified design of the capable quarterly rotation system makes it suitable for high-end installation. The valve is enhanced through strong stems and three severe bearings, which can ensure the minimum torque and perfect characteristics. For accuracy and continuous performance, bidirectional butterfly valve is the best choice in the advanced flow control system.

+86 17357466831

lip@lipvalve.com

Design Advantages

Bidirectional Sealing: Make sure the best flow control in the two directions.

Material Spectrum: From elastic carbon steel to melting drug-resistant super alloy.

Simplified Construction: Public utilization of maximizing space restrictions.

1/4 Rotation Measure: Immediately allow flow adjustment.

Long-term Service Life: Its design is corresponding to backlifting wear.

Sturdy Stem: Reduce torque to ensure stable operation.

Accurate Engineering Bearing: To ensure soft performance by ensuring the reduction of wear.

Technical Parameters

Size	DN15-DN1200, 1/2''-48''
Pressure	PN6-PN100, Class125-Class1500
Temperature	-196°C to 600°C
Connection type	Flanged, Wafer, Welded
Operation mode	Handwheel, Pneumatic, Electric, Hydraulic, Gear Operated

Materials

Valve Body	Forged	A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, etc.
	Cast	WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc.
Stem		F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500, N08020, Inconel625, Incoloy825, etc.
Disc		A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc.
Seat		EPDM, NBR, VITON(X7), HYPALON(X2), etc.

Design Standards

Body	API 609, BS EN 593, ISO 5752, MSS SP-67, ASME B16.34, API 6D, GOST 5762, JIS F7480, etc.
Flange	ANSI B16.5, EN 1092-1, JIS B2220, GB/T 9113, ASME B16.47, GOST 12820, DIN 2501, etc.
Connection	ANSI B16.10, ISO 5211, JIS B2212, ASME B16.25, GOST 33259, DIN 3202, etc.
Test Standards	API 598, EN 12266, ISO 5208, MSS SP-61, ASME B16.104, GOST 9544-2015, JIS B2003, DIN 3230, etc.

Recommended

Enquire for more information

Delivering One-Stop

Butterfly Valves Solutions.

A reputable provider offers more than just a product sale. Lipin provide strong post-purchase support, addressing issues or concerns.

Select Application Scenarios

Before choosing different types of Butterfly Valves, please determine their main uses. Whether it is water treatment, petroleum or other industries, different application scenarios will directly affect valve selection.
Choose The Right Valve Type

Butterfly Valves come in many different types. Depending on factors such as flow control and pressure, choose the one that will perform best in your system.
Select Materials

Diversified selection of materials. Choose different materials according to needs. We provide materials ranging from conventional carbon steel to stainless steel to alloy materials, covering basically all valve materials.
Verify Feasibility (Technical Support)

Discuss with engineers and ask experts to verify to confirm that the valve meets technical requirements. Provide professional advice and installation and maintenance guidance
Quality Control

We have a strict quality inspection department. Every link needs to be inspected before entering the next link. We will never miss any link until the product is delivered safely.
After-Sales Service

24-hour online customer service, 2-year warranty or 18 months after installation, whichever comes first.
